Cu2O@HKUST-1@Au

Cu2O@HKUST-1@Au/Cuprous oxide@HKUST-1@Au/Copper(I) oxide@HKUST-1@Au is a multifunctional composite that integrates the properties of copper(I) oxide, HKUST-1, and gold nanoparticles. This synergistic combination opens up a range of potential applications in catalysis, sensing, and environmental remediation.HKUST-1 (HKUST ⇒Hong Kong University of Science and Technology), which is also called MOF-199.It is a material in the class of metal-organic frameworks (MOFs). Metal-organic frameworks are crystalline materials, in which metals are linked by ligands (so-called linker molecules) to form repeating coordination motives extending in three dimensions. The HKUST-1 framework is built up of dimeric metal units, which are connected by benzene-1,3,5-tricarboxylate linker molecules.

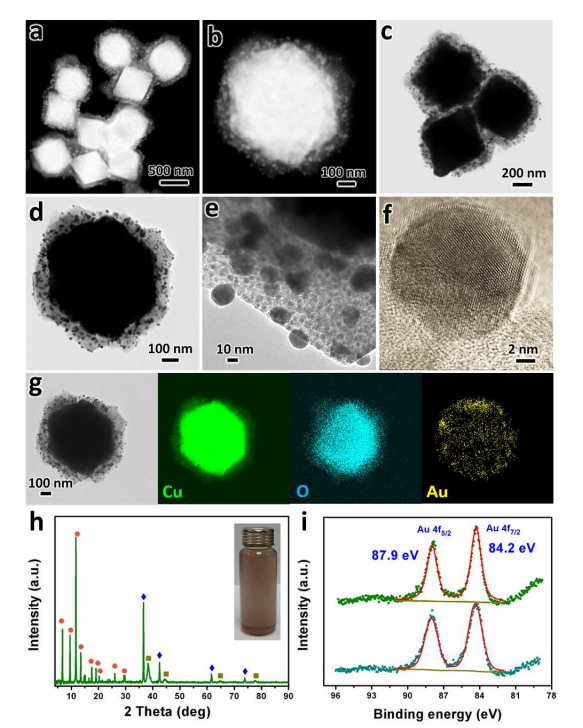

(a,b) Representative HAADF-STEM images of Cu2O@HKUST-1@Au prepared with PVP modification.

(c-f)Representative HAADF-STEM images of Cu2O@HKUST-1@Au prepared with PVP modification.

(g) The corresponding EDX elemental maps of Cu2O@HKUST-1@Au shown in (d),

(h) XRD patterns of Cu2O@HKUST-1@Au prepared with high amount of HAuCl4 (0.1 mM), the diffraction peaks marked with the red spheres, blue rhombuses, and brown cubes represent the MOFs,Cu2O, and gold, respectively. The inset shows the photographs of the sample dispersed in ethanol.

(i) XPS spectra in Au 4f regions recorded on the Cu2O@HKUST-1@Au prepared in the presence (top) and in the absence (bottom) of PVP surfactant.
